50X Magnification Trinocular Gemological Microscope For Diamond

50X Magnification Trinocular Gemological Microscope For Diamond

50X Magnification Trinocular Gemological Microscope For Diamond
50X Magnification Trinocular Gemological Microscope For Diamond
50X Magnification Trinocular Gemological Microscope For Diamond
Product Details:
Place of Origin: China
Brand Name: Fable
Model Number: FGM-R6S-171T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Export Carton
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Drawtube: Trinocular Theory: Gem Microscope
Magnification: 7.5X-50X Eyepiece: WF10X/22mm
Application: GEM And Diamond Working Distance: 110mm
Weight: About 16kg Power Supply: 100V To 240V
High Light:

Trinocular Gemological Microscope

,

50X Magnification Gemological Microscope

,

Diamond Gemological Microscope

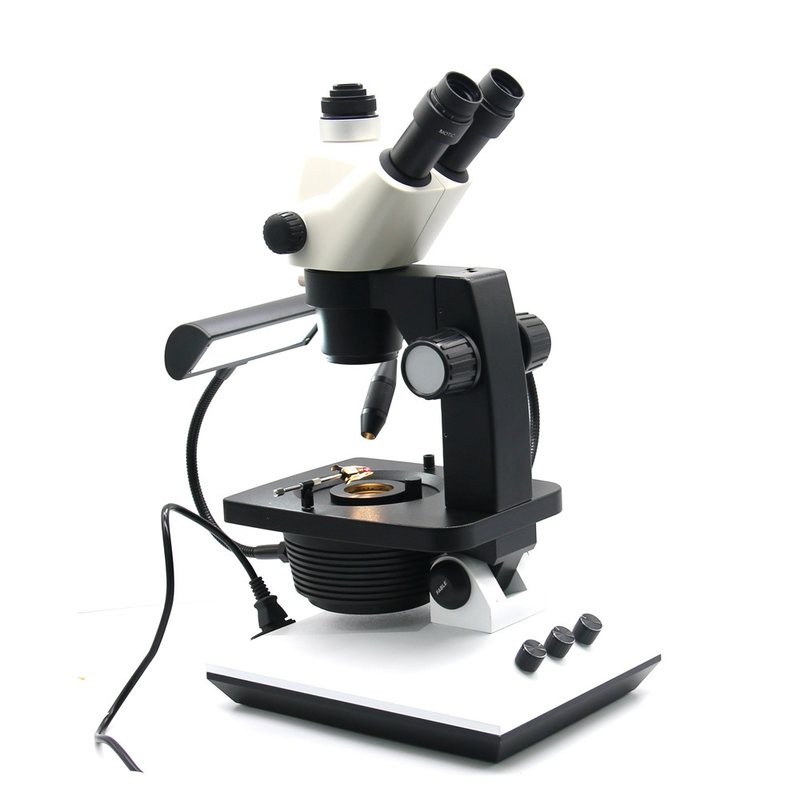

Fable 10W lighting mode Swing-arm 7.5X-50X TRINOCULAR Gem Microscope FGM-R6S-171T

Specification:

* Swing-arm type base 6: Classic microscope base, rotate 360° , so that more people can operate and communicate;
* Roll ball guide, go up and down stable and comfortable, great focus range;
* Adjustable automatic locking structure, avoid long time working and wear down lead to gliding;
* Humanized design, both sides with gem clamp mounting hole;
* Supply dark field, bright field, top light and side light 4 types illumination system;
* Bottom light: 10W adjustable high brightness USA made LED light, energy conservation and efficient,adopt latest patent illumination system (patent technology 201120391412.4), bright field and dark field complete separation, optimized dark field and bright field;
* Equip light beam diameter 2-42mm continuous adjustable diaphragm, ring dark filed DIFFUSER which fixed without screw, optimize dark field;
* 6W LED top light, 6500-7000K color temperature siutable for diamond grading ;
* 3W adjustable single LED side light;
* Addition orthogonality polarized conoscope system, add more key evaluation basis that the gems under orthogonality polarizing;

* Unify voltage: 100-240V, stable lighting;



Equipped with F171T lens:

magnify upright image, high definition, vivid color, strong three-dimensional sense, and wide field of vision. The optical components are processed by special film layer to form a good contrast flat image in the ultra-wide field of vision, and the field of view edge image is clear and bright.

Magnification 7.5X-50X continuous precision zooming
zooming ratio 1:6.7
operating distance 110mm
the pupil distance adjustment range 48mm-75mm
Type Trinocular
CCD 1/3X connected CTV port for CCD output image.
eyepiece tube tilted 45 degrees relative to the horizontal direction
