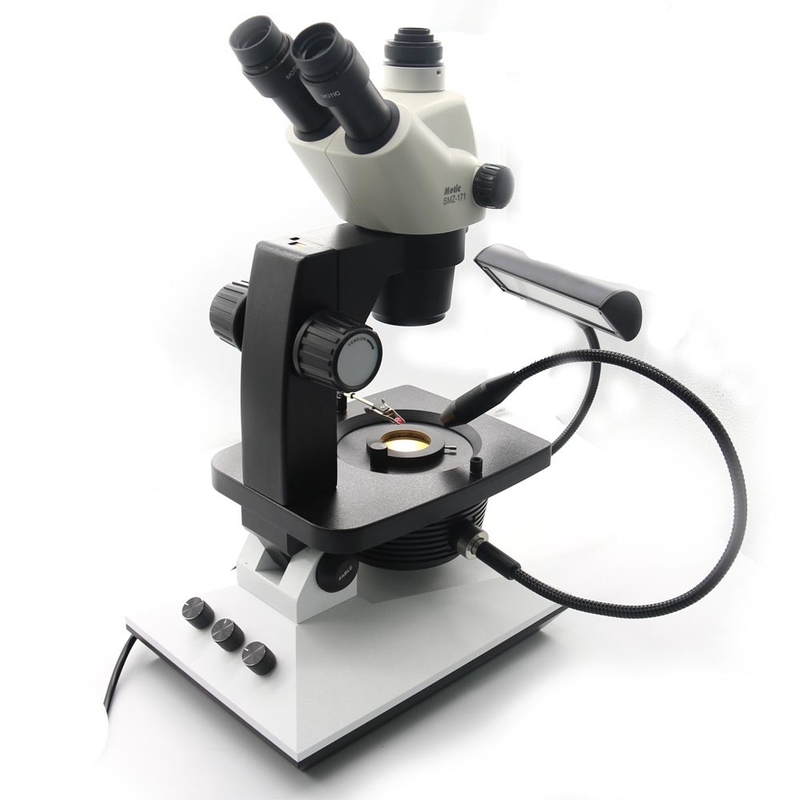

Fable New Generation Swing Arm 7.5X-50X Gem Trinocular Microscope

Fable New Generation Swing Arm 7.5X-50X Gem Trinocular Microscope

Fable New Generation Swing Arm 7.5X-50X Gem Trinocular Microscope
Fable New Generation Swing Arm 7.5X-50X Gem Trinocular Microscope
Fable New Generation Swing Arm 7.5X-50X Gem Trinocular Microscope
Product Details:
Place of Origin: Guangdong, China
Brand Name: FABLE
Certification: Patent number: 2011203914124
Model Number: FGM-R6S-171T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 1 set in a bubble box, 1 box in a master carton.
Delivery Time: In 15 days after order confirmation.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 800 sets/month
Contact Now
Detailed Product Description
Magnification: 7.5X-50X Lens: 171T Trinocular
Eyepiece: WF10X/22mm Light Source: LED
Dimension: 435x330x670mm Weight: 15kg
Power Supply: 100-240V Warranty: 1 Year
High Light:

gemology microscope

,

gemological microscope

Fable New Generation Swing Arm 7.5X-50X Gem Trinocular Microscope

Model number: FGM-R6S-171T



Base description:

Base body 45°C inclined and 360°C rotational arm;

4 illumination systems: bright field, dark field, top light and side light;

The latest patented lighting system(Patented technology2011203914124),makes the bright field,darkfield two illumination completely separated,an effective solution to the problem of confusion of the traditional bright field,dark field light illumination light,essentially optimize the bright dark field lighting effects

Bottom light: 10W of LED UAS made light;

Top light: 6W of LED white light with siutable temperature for grading diamond ;

With 3W LED side light;

With gem clamp mounting hold on both right and left side.

World-wide voltage: 100V-240V;

Dimension: 435x330x670mm;



F171T Lens Feature:

With eyepiece for wide field of view and imaging clearly;
Adjustable eyepiece with WF10X/22mm;
Magnification: 7.5X-50X;
Zoom ratio: 6.7:1
Trinocular with CTV camera interface, the camera interface can be connected to CCD to output images
Working distance: 110mm;
