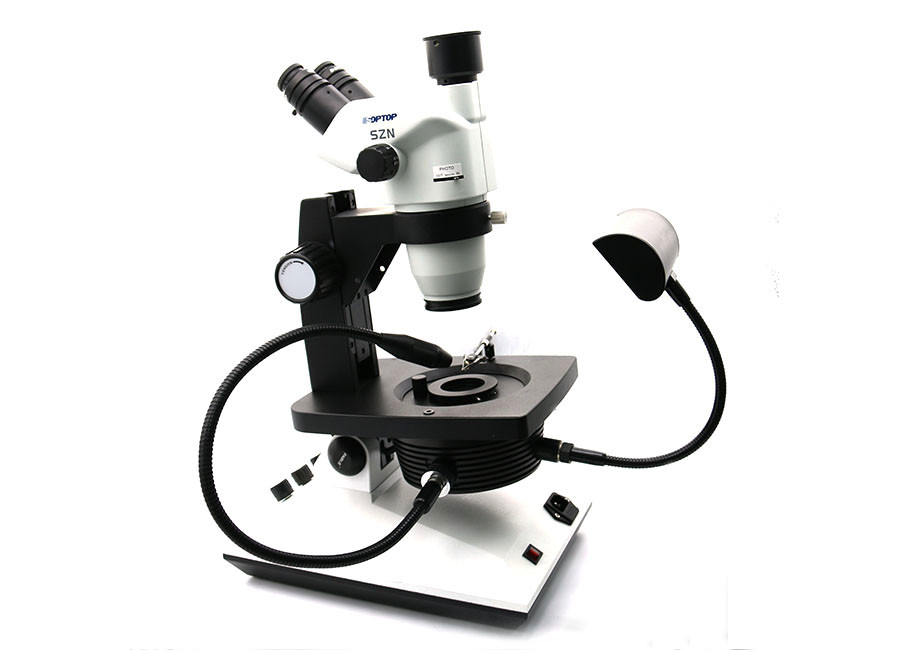

Stereo Trinocular Gem Microscope Jewelry Microscope High Precision 10X-67.5X

Stereo Trinocular Gem Microscope Jewelry Microscope High Precision 10X-67.5X

Stereo Trinocular Gem Microscope Jewelry Microscope High Precision 10X-67.5X
Stereo Trinocular Gem Microscope Jewelry Microscope High Precision 10X-67.5X
Stereo Trinocular Gem Microscope Jewelry Microscope High Precision 10X-67.5X
Product Details:
Place of Origin: China
Brand Name: Fable
Model Number: FGM-R5S-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: One unit in a bubble box then in a brown box
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or western Union, paypal, Alipay
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Product Name: Gem Microscope Magnification: 10.0X-67.5X
Voltage: 110V-240V Light Source: LED
Weight: 15kg Size: 435X330X670mm
Warranty: One Year Type: Trinocular
High Light:

Trinocular Gem Microscope

,

High Precision Gem Microscope

,

Stereo Jewelry Microscope

Stereo Trinocular Gem Microscope Jewelry Microscope High Precision 10X-67.5X

FGM-R5S-08



Jewelry microscopes have relatively high requirements for the lens, which must meet the requirements of strong stereo, large depth of field, no chromatic aberration, no aberration, parfocal, and top light source, bottom light source bright and dark areas. Our microscope meets all requirements of gem microscope



Specifications:

Size 435x330x670mm
Rotatable Angle 45°C inclined and 360°C rotational
Illumination systems Bright field, dark field, top light and side light
Bottom light 10W of LED UAS made light
Top light 6W high-brightness LED white light source, 6500+500K color temperature diamond grading lighting
Slide light With 3W LED
World-wide voltage 100V-240V
Image With F08 eyepiece for wide field of view and imaging clearly
Magnification 10.0X-67.5X
Working distance 100mm
Eyepiece Trinocular
Accessories With gem clamp mounting hold on both right and left side
Portport With 1/2x CTV, CCD output image can be connected
External function It can be connected with the camera



Product Advantage:

  1. With magnification of 10X to 67.5X continuous variable
  2. With world wild voltage of 110V -  240V
  3. With Polariscope system
  4. With LED lighting source

Applications: Gem Laboratory,Gemology School, Gemology student.
