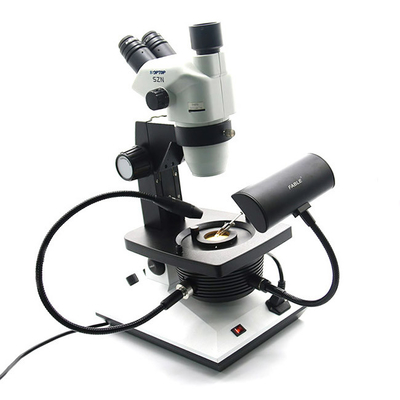

Trinocular Gemology Microscope with Color Temperature of 6000k - 7000k

Trinocular Gemology Microscope with Color Temperature of 6000k - 7000k

Trinocular Gemology Microscope with Color Temperature of 6000k  - 7000k
Trinocular Gemology Microscope with Color Temperature of 6000k  - 7000k
Trinocular Gemology Microscope with Color Temperature of 6000k  - 7000k
Product Details:
Place of Origin: China
Brand Name: Fable
Certification: Patent Number 201120391412.4
Model Number: FGM-R6S-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: One unit in a bubble box then in a brown box
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or western Union, paypal, Alipay
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Product Name: Gem Microscope Magnification: 10X - 67.5X Continuous Variable
Voltage: 110V-240V Light Source: LED
Weight: 15kg Size: 435X330X670mm
Lens:: Comparable With Olympus SZ61 Warranty: One Year
High Light:

jewelers microscope

,

gemological microscope

Trinocular Gemology Microscope with Color Temperature of 6000k - 7000k
FGM-R6S-08


Product Advantage:

  1. With magnification of 10X to 67.5X continuous variable
  2. With Polariscope system
  3. With latest lighting system for completely separating the dark and bright field.
  4. With CTV camera interface, the camera interface can be connected to CCD to output images.



With F08 eyepiece for wide field of view and imaging clearly;

Magnification:10X to 67.5X continuous variable
Zoom ratio:6.7:1
Working distance:110mm
Adjustable eyepiece:WF15X/16mm
Type:Trinocular
4 illuminations:bright field, dark field, top light and Optic Fiber light(Side light)
Color temperature:6000-7000K
Adjustable Light beam:2-42mm
Feature:With latest lighting system for completely separating the dark and bright field.
World-wide voltage:100V-240V;



Description:

  1. Generation 6th of Arm type Gem Microscope, with classical base and rotable of 360 degree for more convenience using and communicating.
  2. With lens 0-45 degree inclined freely for more comfortable operating.
  3. With self-lock system for avoiding auto-down.
  4. With two holds for clip and loupe.
  5. With latest lighting system for completely separating the dark and bright field.
  6. With 4 illumination systems: bright field, dark field top light and side light.
  7. with 10W continuously adjustable of US made LED light for energy conservation(bottom light).
  8. Wtih 6W LED white light on the top side and its color temperature of 6500+500K meet the requirement of grading diamond.
  9. With 3W LED in the side for auxiliary lighting.
  10. With Polariscope system.
  11. Voltage:100-240V.
  12. With F08 Binocular lens.
  13. Magnification:10-67.5X, Zoom ratio:6.7:1.
  14. Working distance:110mm.
  15. N.W.:15KG.

Applications: Gem Laboratory,Gemology School, Gemology student.
