Lapidary Machine with Wheel Index of 96 and 64 and the Shaping Faceter

Lapidary Machine with Wheel Index of 96 and 64 and the Shaping Faceter

  • Lapidary Machine with Wheel Index of 96 and 64 and the Shaping Faceter
Lapidary Machine with Wheel Index of 96 and 64 and the Shaping Faceter
Product Details:
Place of Origin: Guangdong, China
Brand Name: FABLE
Model Number: FJM-2014A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Carton packing.
Delivery Time: In 7 days after payment confirmation.
Payment Terms: T/T, Western Union,paypal
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Functions: Faceting And Polishing Motor Power: 170-180W
Motor Speed: 1350 R/min. Power Supply: AC220V, 50-60Hz.
Mainshaft Speed: 2300-2800 R/min. Operation: Automatic And Manual Availability
Accessory: 2 Faceting Hands Faceting Hardness: Up To 9
High Light:

jewelry tweezers

,

gemstone testing tools

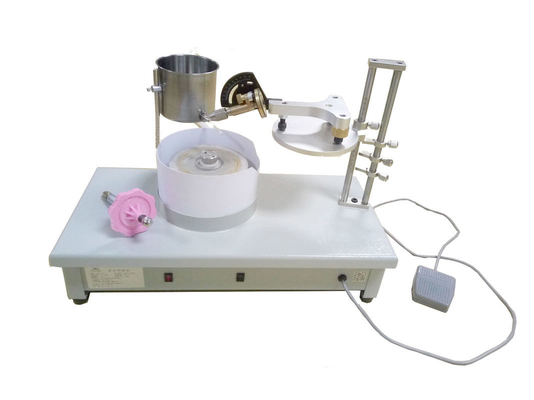

Lapidary Machine with Wheel Index of 96 and 64 and the Shaping Faceter

Model number: FJM-2014A



The gem lapidary machine is used for gem facet processing and grinding samples for mineral separation. Fable Faceting machine has a compact structure and reasonable coordination. It has the advantages of stable operation, good heat dissipation and low noise under high-speed operation.



Product Parameters

Model

FJM-2014A

Input Voltage

AC220V,50/60HZ

Moter Power

170-180W

Speed of Moter

1350r/min

Speed of Mainshaft

2300-2800r/min

Diameter of the disk

150mm

Angle Range

1-90 degree

Size of Machine

600*300*380mm

With vernier scale,accuracy

0.1mm

Index wheel

96 and 64



Product Description

Gemological Lapidary Machine with Faceting and Polishing Functions with High Precision.



Product Application

gemology, gem/jewellry manufacturing industry, jewellery technology school, etc.



Product Accessories

1.One Bucket

2.One Shaping holder

3.One Faceting holder

4.One Polishing and Faceting disk,Diameter:150mm

5.With Power switch

6.automatic control button

7.Foot controller

8.One cable connector

9.10 pieces of dop stick

10.One set of stander



Operation Methods

There are ways to operate the machine by automatic and foot control.

1. Foot control. First turn on the machine's power switch, and then step on the foot switch, so that the grinding disc will begin to rotate for gem processing.When shutting down, raise the foot switch first, and then turn off the power switch.
2. Automatic control. Turn on the power switch first, and then turn on the automatic switch, the machine starts to automatic working. When closing,turn off the automatic switch at first,and then turn off the power switch.



Applications:

gemology, gem/jewellry manufacturing industry, jewellery technology school.

Lapidary Machine with Wheel Index of 96 and 64 and the Shaping Faceter 0Lapidary Machine with Wheel Index of 96 and 64 and the Shaping Faceter 1

Lapidary Machine with Wheel Index of 96 and 64 and the Shaping Faceter 2Lapidary Machine with Wheel Index of 96 and 64 and the Shaping Faceter 3
