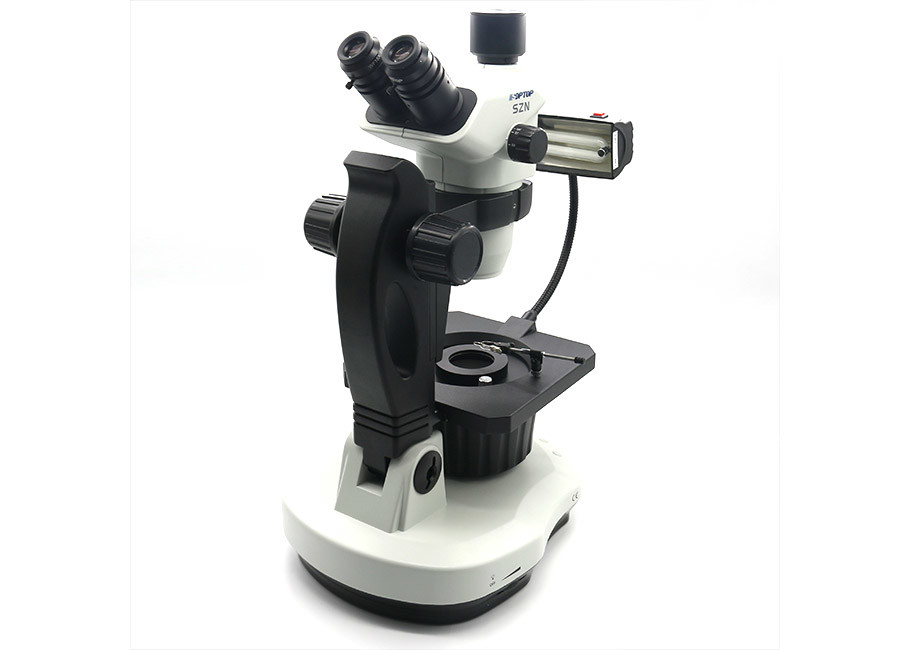

Swing arm type Trinocular Microscope With F08 Trinocular lens

Swing arm type Trinocular Microscope With F08 Trinocular lens

  • Swing arm type Trinocular Microscope With F08 Trinocular lens
Swing arm type Trinocular Microscope With F08 Trinocular lens
Product Details:
Place of Origin: China
Brand Name: Fable
Model Number: FGM-R3S-08
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: negotiation
Packaging Details: Carton package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 1,000Units per month
Contact Now
Detailed Product Description
Product Name: Swing Arm Type Gem Microscope(Generation 2nd) Magnifier: 10X-67.5X Continuous Doubling
Input Voltage: AC100V-240V Wide Voltage Lens: F08 Trinocular Lens
Color: White Zoom Rate: 6.7:1
High Light:

gemology microscope

,

gemological microscope

Swing arm type Trinocular Microscope With F08 Trinocular lens



Product Application

Gemological labs, gemology schools/institutes, gem&jewelry industrials, --etc.



Product Description

3rd generations of swing arm base:
1. Oval base, can rotate 360°;
2. The lens body can be adjusted freely within the range of 0-45°;
3. The hand-held hole is designed in the middle of the lens arm, which makes the lens adjustment convenient and safe; the tightness of the focusing hand wheel can be adjusted, and the focusing stroke is large; there are mounting holes for the gem clip on both sides;
4. Provide three lighting methods: bright area, dark area and top light;
5. 30W high-brightness adjustable halogen bottom lamp; equipped with a beam diameter of 2-42mm continuously adjustable large light barrier; 7W daylight-type top lamp, the color temperature meets the requirements of diamond grading lighting;
6. The orthogonal polarization conoscopic system is added to increase the key identification basis for gemstones under orthogonal polarization; integrated global wide-voltage power supply, stable brightness.

7. Working with world wide voltage of 100V-240V.



Product Feature

1.Product Name: Swing arm type Gem Microscope(Generation 3rd)
2.With F08 Trinocular lens
3.Long-life LED light source
4.Have three kinds of light illumination:Bright field,dark field and the top light
5.Bright field and dark field through the electronic switch control,easy to operate
6.The user-friendly design,both sides have gem clip mounting holes
7.AC100V-240V wide voltage power supply
8.10X-67.5X continuous doubling;WF15X eyepiece,visual field is 16mm,work distance is 100mm;
9.30W High brightness adjustable halogen bottom lamp.
10.7W Daylight dome light 5500-7200K;
11.Free adjustment of the mirror body in the range of 0-45°.The Circular base can rotate 360 degrees.
12.The diameter of 2-42mm continuously adjustable light bar
