Rotatable Ellipse base Binocular Microscope With F07 binocular lens

Rotatable Ellipse base Binocular Microscope With F07 binocular lens

Rotatable Ellipse base Binocular Microscope With F07 binocular lens

Product Details:

Place of Origin: China
Brand Name: Fable
Model Number: FGM-R3S-07

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: FOB Shenzhen: USD1719.00/unit
Packaging Details: Carton package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 1,000Units per month
Contact Now
Detailed Product Description
Product Name: Swing Arm Type Gem Microscope(Generation 2nd) Magnifier: 10.0-67.5X Continuous Doubling
Input Voltage: AC100V-240V Wide Voltage Lens: F07 Binocular Lens
Color: White

[Product Application]


Gemological labs, gemology schools/institutes, gem&jewelry industrials, --etc.


[Product Description]


Fable Generation 3rd of Arm type gem microscope,with classical base and rotatable of 360° for more convenience using and communicating.And good design and 45° inclined freely for comfortable operating.It can be changed the lens freely with the lock for avoiding auto-down.There are installing hold on both right and left side of the gem clip.

30W halogen lamp under the bottom side with 2-42mm diameter of flexibility light beam.

7W sunlight on the top side for providing suitable color temperature meet the requirement of grading diamond.World wide voltage of 100V-240V.


[Product Feature]

1.Product Name: Swing arm type Gem Microscope(Generation 3rd)
2.With F07 binocular lens(6745N lens)
3.Ball type focusing guide rail, adjustable locking mechanism
4.Have three kinds of light illumination:Bright field,dark field and the top light
5.Mirror arm central design of hand hole position
6.The user-friendly design,both sides have gem clip mounting holes
7.AC100V-240V wide voltage power supply
8.10.0-67.5X continuous doubling;10X eyepiece,visual field is 22mm,work distance is 100mm;
9.30W High brightness adjustable halogen bottom lamp.
10.7W Daylight dome light 5500-7200K;0.5W white LED lighting,continuously adjustable
11.Free adjustment of the mirror body in the range of 0-45°.The Ellipse base can rotate 360 degrees.
12.The diameter of 2-42mm continuously adjustable light bar
13.Additional orthogonal polarizing conoscopic system



[Product Imaging]

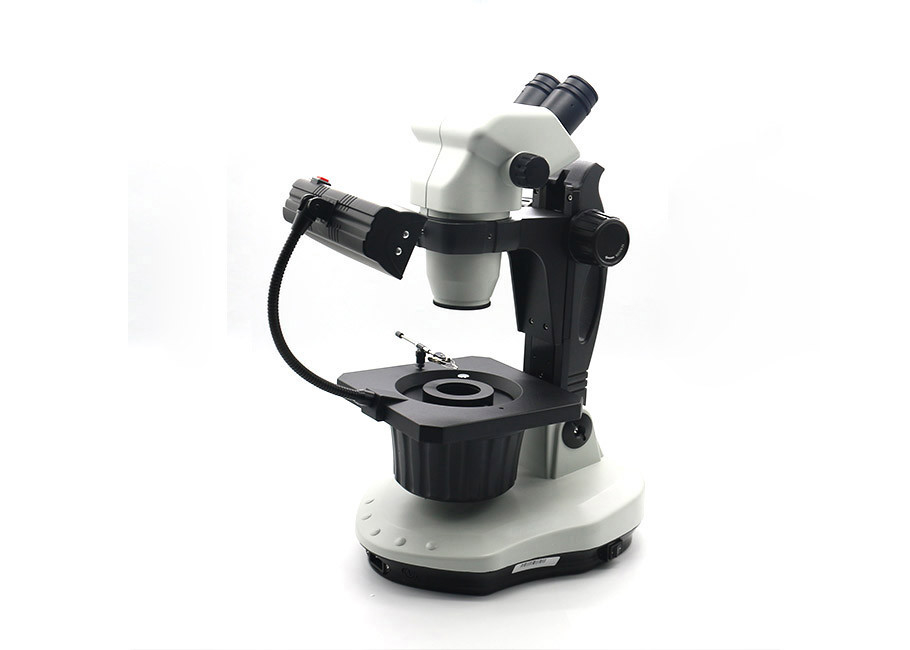

Rotatable Ellipse base Binocular Microscope With F07 binocular lens
