Ellipse base Generation 3rd Swing arm type Gem Microscope F12 Trinocular lens

Ellipse base Generation 3rd Swing arm type Gem Microscope F12 Trinocular lens

Ellipse base Generation 3rd Swing arm type Gem Microscope F12 Trinocular lens

Product Details:

Place of Origin: China
Brand Name: Fable
Model Number: FGM-R3S-12

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: Stop production
Packaging Details: Carton package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 1,000Units per month
Contact Now
Detailed Product Description
Product Name: Swing Arm Type Gem Microscope(Generation 2nd) Magnifier: 10.0-67.5X Continuous Doubling
Input Voltage: AC100V-240V Wide Voltage Lens: F12Trinocular Lens
Color: White

[Product Application]



Gemological labs, gemology schools/institutes, gem&jewelry industrials, --etc.



[Product Description]



Fable Generation 3rd of Arm type gem microscope,with classical base and rotatable of 360° for more convenience using and communicating.And good design and 45° inclined freely for comfortable operating.It can be changed the lens freely with the lock for avoiding auto-down.There are installing hold on both right and left side of the gem clip.

30W halogen lamp under the bottom side with 2-42mm diameter of flexibility light beam.

7W sunlight on the top side for providing suitable color temperature meet the requirement of grading diamond.World wide voltage of 100V-240V.



[Product Feature]



1.Product Name: Swing arm type Gem Microscope(Generation 3rd)
2.With F12 Trinocular lens(6745 lens)
3.Ball type focusing guide rail, adjustable locking mechanism
4.Have three kinds of light illumination:Bright field,dark field and the top light
5.Mirror arm central design of hand hole position
6.The user-friendly design,both sides have gem clip mounting holes
7.AC100V-240V wide voltage power supply
8.6.7-45X continuous doubling;10X eyepiece,visual field is 22mm,work distance is 100mm;
9.30W High brightness adjustable halogen bottom lamp.
10.7W Daylight dome light 5500-7200K;0.5W white LED lighting,continuously adjustable
11.Free adjustment of the mirror body in the range of 0-45°.The Ellipse base can rotate 360 degrees.
12.The diameter of 2-42mm continuously adjustable light bar
13.Additional orthogonal polarizing conoscopic system





[Product Imaging]

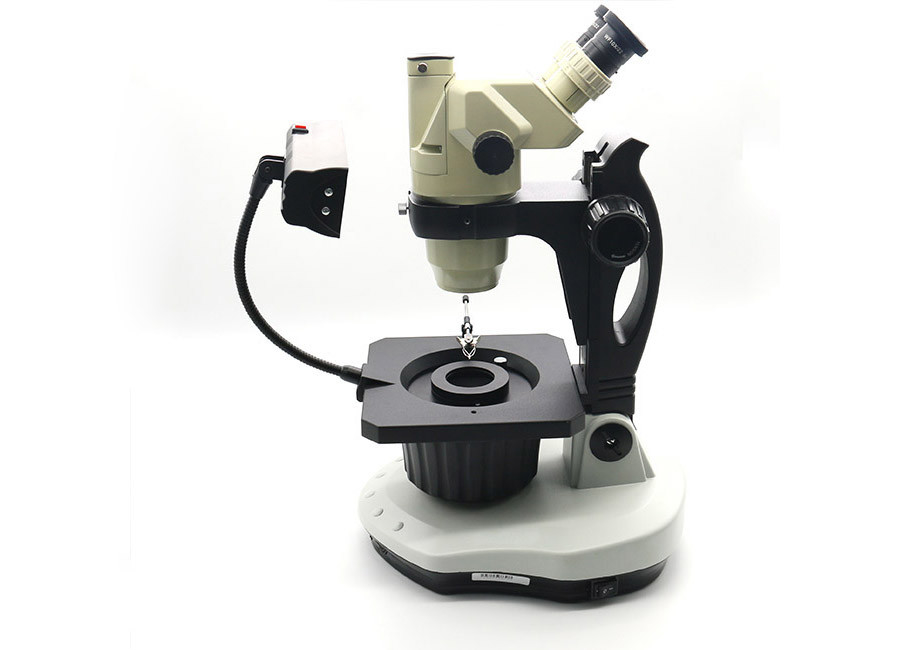

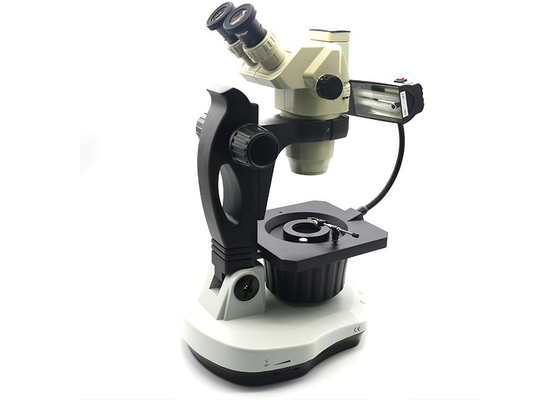

Ellipse base Generation 3rd Swing arm type Gem Microscope F12 Trinocular lens
