360 degrees Gemology Microscope classical base Swing arm type

360 degrees Gemology Microscope classical base Swing arm type

360 degrees Gemology Microscope classical base Swing arm type

Product Details:

Place of Origin: China
Brand Name: Fable
Model Number: FGM-R5S-08

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: FOB Shenzhen: USD2462.50/unit
Packaging Details: Carton package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 1,000Units per month
Contact Now
Detailed Product Description
Product Name: Swing Arm Type Gem Microscope(Generation 2nd) Magnifier: 10.0-67.5X Continuous Doubling
Input Voltage: AC100V-240V Wide Voltage Lens: F08 Trinocular Lens
Color: White

[Product Application]


Gemological labs, gemology schools/institutes, gem&jewelry industrials, --etc.


[Product Description]


Fable Generation 5th of Arm type gem microscope,with classical base and rotatable of 360° for more convenience using and communicating.And good design and 0-45° inclined freely for comfortable operating.It can be changed the lens freely with the lock for avoiding auto-down.There are installing hold on both right and left side of the gem clip.

10W high power continuously adjustable the U.S made LED lights,high efficiency and energy saving.

3W LED high brightness adjustable LED sidelight auxiliary lighting,with world wide voltage of 100V to 240V.


[Product Feature]


1.Product Name: Swing arm type Gem Microscope(Generation 5th)
2.With F08 Trinocular lens(6745N lens)
3.Ball type focusing guide rail, adjustable locking mechanism
4.Have three kinds of light illumination:Bright field,dark field and the top light
5.Mirror arm central design of hand hole position
6.The user-friendly design,both sides have gem clip mounting holes
7.AC100V-240V wide voltage power supply
8.10.0-67.5X continuous doubling;10X eyepiece,visual field is 22mm,work distance is 100mm;
9.10W high power continuous adjustable imported LED bottom lamp,Annular dark field diffuser, no screw design
10.6W continuously adjustable ultra high brightness LED white light surface light source 5500-7200K
11.Free adjustment of the mirror body in the range of 0-45°.The Classical base can rotate 360 degrees.
12.The diameter of 2-42mm continuously adjustable light bar
13.Additional orthogonal polarizing conoscopic system
14.Side light auxiliary lighting with 3W high brightness adjustable LED



[Product Imaging]

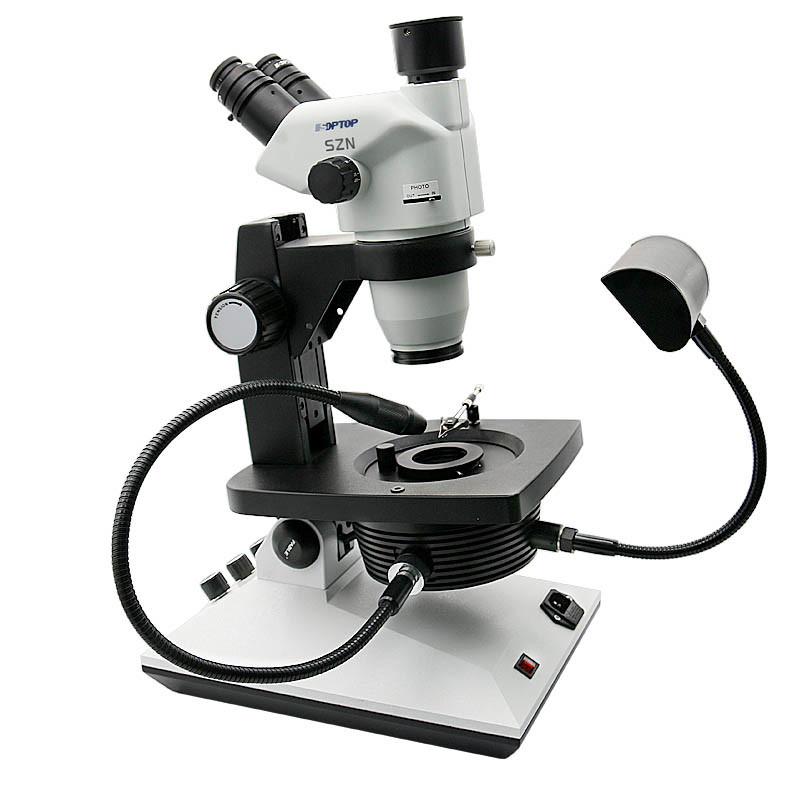

360 degrees Gemology Microscope classical base Swing arm type
