10W Lighting Mode Optical Swing Arm Gemstone Microscope Self Locking

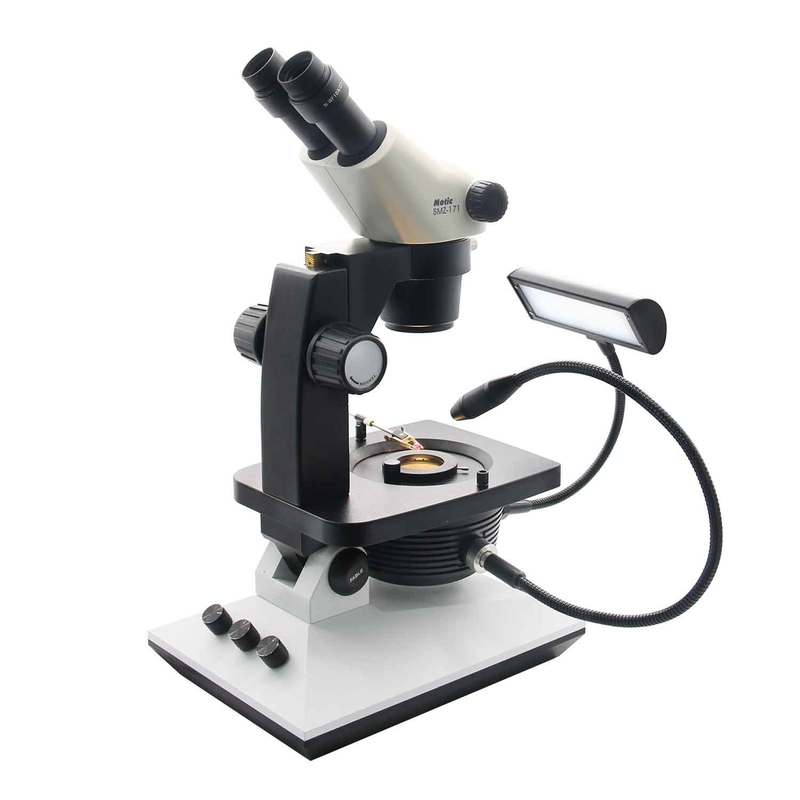

Fable 10W lighting mode Swing-arm 7.5-50X BINOCULAR Gem Microscope FGM-R6S-171

Product Advantage:

1. With magnification of 7.5X to 50X continuous variable
2. With world wild voltage of 110V - 240V
3. With Polariscope system
4. With LED lighting source
5. With latest lighting system for completely separating the dark and bright field.

Specification for microscope base:

1. Swing-arm type base 6: Classic microscope base, rotate 360°;
2. this mirror body can be adjusted freely within the range of 0-45°; ball rail;
adjustable self-locking mechanism; both sides with gem clamp mounting hole;
3. provide the bright field and dark fields, top light and side light four lighting mode 10W;
high power adjustable USA LED bottom lamp, energy saving and high efficiency;
4. assembly beam diameter 2-42mm continuously adjustable light bar, no screw design.
The annular dark field diffuser, minus screw image interference, provide quality dark field; Top light is 6W continuously adjustable high brightness white light LED surface light source,
5. with 6500+500K color temperature diamond grading requirements. 3W lighting;
high brightness adjustable LED side light. Additional auxiliary lighting;
6. orthogonal polarization conoscopic system, increase the key evidence for the identification of precious stones under the orthogonal polarization;integration of world wide voltage, stable brightness;

F171 lens:
