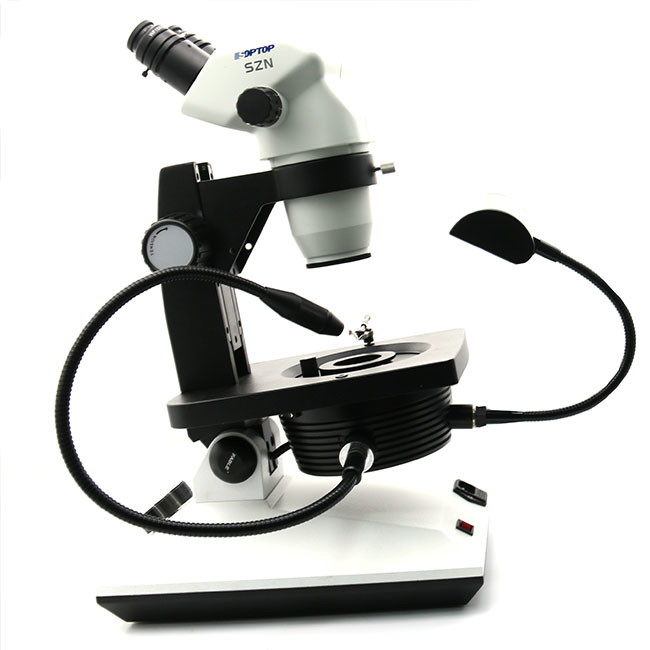

67.5X Magnification Stereoscopic Gem Microscope Binocular Type

67.5X Magnification Stereoscopic Gem Microscope Binocular Type

67.5X Magnification Stereoscopic Gem Microscope Binocular Type
67.5X Magnification Stereoscopic Gem Microscope Binocular Type
67.5X Magnification Stereoscopic Gem Microscope Binocular Type
Product Details:
Place of Origin: China
Brand Name: Fable
Model Number: FGM-R5S-07
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: One unit in a bubble box then in a brown box
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or western Union, paypal, Alipay
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Product Name: Gem Microscope Magnification: 10.0X-67.5X
Voltage: 110V-240V Light Source: LED
Working Distance: 100mm Type: Binocular
Zoom Rate: 6.7:1 Warranty: One Year
High Light:

Stereoscopic Gem Microscope

,

67.5X Magnification Gem Microscope

,

Binocular Type Gem Microscope

67.5X Magnification Stereoscopic Gem Microscope Binocular Type

FGM-R5S-07



Base description:

★Classic base, rotate 360°;
★lens body adjusted freely within the range of 0-45°;

★ball-type guide rail; adjustable self-locking mechanism; installation holes for gem clips on both sides;
★Provide four lighting Illuminations: bright field, dark field, top light and side light;
bottom LED light :10W,continuously adjustable imported from the United States, energy-saving and efficient;

assembly beam diameter 2-42mm continuously adjustable large light barrier;
★The ring-shaped dark field diffuser has no screw fixing design, minus screw image interference, providing high-quality dark field;
★top light : 6W continuously adjustable ultra-high brightness LED white surface light source,

color temperature:6500+500K meets the requirements of diamond grading lighting;
★3W high-brightness adjustable LED side light auxiliary lighting;
★with The orthogonal polarization conoscopic system

★global wide-voltage power supply, stable brightness.



Specifications:

Lighting source Super brightness LED white light
Rotatable Angle 45°C inclined and 360°C rotational
Illumination systems Bright field, dark field, top light and side light
Bottom light 10W of LED UAS made light
Top light 6W high-brightness LED white light source, 6500+500K color temperature diamond grading lighting
Slide light With 3W LED
World-wide voltage 100V-240V
Image High Quality F161 eyepiece for wide field of view and imaging clearly
Magnification 10.0X-67.5X
Working distance 100mm
Eyepiece Binocular
Zoom rate 6.7:1
Diaphragm Diameter 2-42mm
Working Distance 100mm



Applications: Gem Laboratory,Gemology School, Gemology student.
