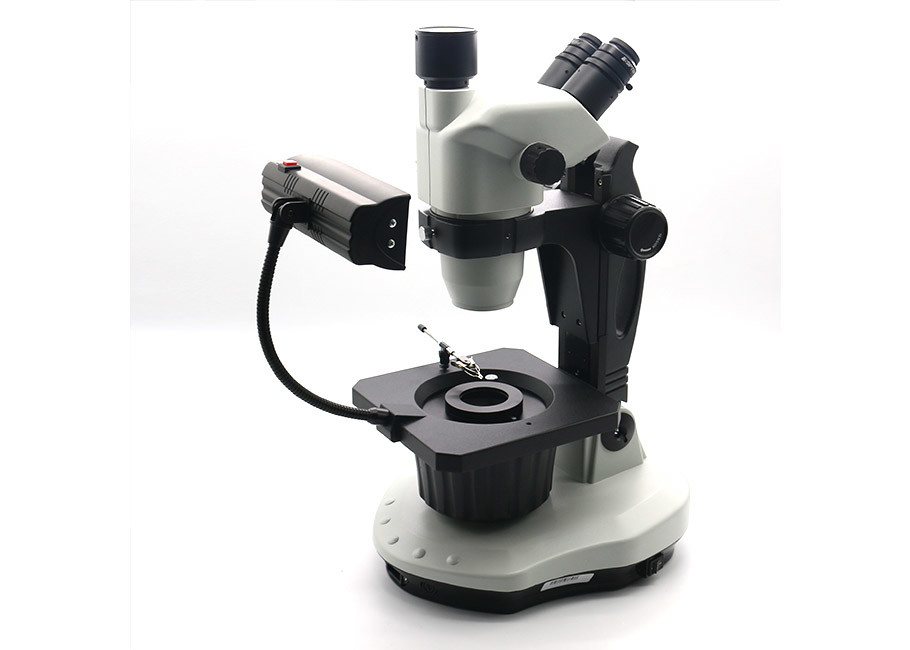

Gemology School Stereo Zoom Trinocular Microscope Magnification 10X - 67.5X

Gemology School Stereo Zoom Trinocular Microscope Magnification 10X - 67.5X

  • Gemology School Stereo Zoom Trinocular Microscope Magnification 10X - 67.5X
Gemology School Stereo Zoom Trinocular Microscope Magnification 10X - 67.5X
Product Details:
Place of Origin: China
Brand Name: Fable
Model Number: FGM-R3S-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: One unit in a bubble box then in a brown box
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or western Union, paypal, Alipay
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Product Name: Gem Microscope Magnification: 10X - 67.5X Continuous Variable
Voltage: 110V-240V Light Source: Halogen And LED
Weight: 12.5kg Size: 530X340X620mm
Illumination: Bright Field, Dark Field, Top Light Warranty: One Year
High Light:

jewelers microscope

,

gemological microscope

Gemology School Stereo Zoom Trinocular Microscope Magnification 10X - 67.5X



Product Advantage:

  1. For F08 Lens,The optical components are treated with a special film layer to form a flat image with good contrast in the ultra-wide field of view, and the image at the edge of the field of view is also clear and bright, which is comparable to the imported OLYMPUS stereo microscope SZ61;
  2. With CTV camera interface, the camera interface can be connected to CCD to output images.

  3. With magnification of 10X to 67.5X continuous variable;
  4. With world wild voltage of 110V - 240V;

Description:

  1. With Round base, 45 degree incline and 360 degree rotation, adjustable freely.
  2. With handle for convenience carry.
  3. With Gemstone clip for holding stone.
  4. With 3 illumination systems: bright field, dark field, top light.
  5. With 30W halogen light at the bottom.
  6. With 7W white light at the top and its color temperature meet the requirement of grading diamond.
  7. World-wide voltage:110V-240V.
  8. With F08 Trinocular lens.
  9. Magnification: 10X-67.5X continuous variable, Zoon rate:6.7:1.
  10. Working distance:100mm.
  11. With WF15X/16mm eyepiece.
  12. N.W.:12.5KG.

Specifications:

Technical Parameter

Eyepiece

WF15X/16mm

Type

Trinocular

Adjustable Light beam

2-42mm

Magnification

10X to 67.5X

3 illuminations

bright field, dark field, top light

Color temperature

6000-7000K

Working Distance

100mm

Power supply

110V-240V

Size

 530X340X620mm

Weight

12.5 Kg



Applications: Jewelry Shop, Gemology School, Gemology student, gemology hobbyist
