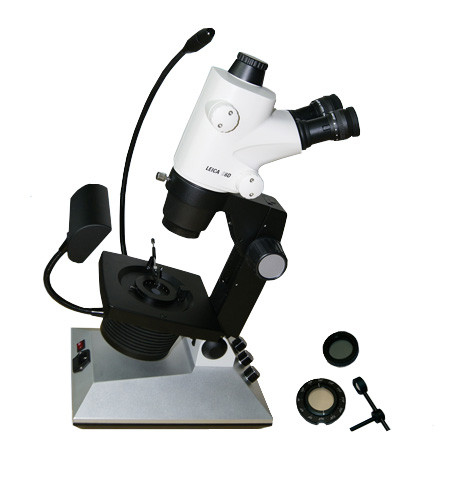

Leica Trinocular Gem Microscope with Color Temperature of 6000k - 7000k

Leica Trinocular Gem Microscope with Color Temperature of 6000k - 7000k

FGM-R6S-02

On the basis of S6E, the Leica S6D adds a three-eye camera export, including Leica professional camera receiver, which can be connected to CCD to output images. According to the customer's digital camera model (some cameras do not have an interface, please communicate with our company before purchasing the camera) to purchase a dedicated camera interface, you can easily take pictures with a digital camera; you can also choose a high-definition CCD to output images through the display. The Leica S6E lens adopts a cross-optical system (Greenough) to provide ultra-high optical resolution and practicability; due to its excellent optical design, the eyes will not be tired after long-term use;

F02 Microscope Lens:

Leica S6E lens, fully adopts the cross optical system (Greenough), provides ultra-high optical resolution and practicality; due to the excellent optical design, the eyes will not be fatigued after long-term use; two multiple limit devices with adjustable settings;

Description:

1. Generation 6th of Arm type Gem Microscope, with classical base and rotable of 360 degree for more convenience using and communicating.
2. With lens 0-45 degree inclined freely for more comfortable operating.
3. With self-lock system for avoiding auto-down.
4. With two holds for clip and loupe.
5. With latest lighting system for completely separating the dark and bright field.
6. With 4 illumination systems: bright field, dark field top light and side light.
7. with 10W continuously adjustable of US made LED light for energy conservation(bottom light).
8. Wtih 5W LED white light on the top side and its color temperature of 6000-6500K meet the requirement of grading diamond.
9. With 3W LED in the side for auxiliary lighting.
10. With Polariscope system.
11. Voltage:100-240V.
12. With Leica Trinocular lens.
13. Magnification:10X-64X, Zoom ratio:6.3:1.
14. The viewing angle of the observation lens barrel is 38°, and the diopter is adjustable; two magnification limit devices with adjustable settings;
15. Working distance:110mm.
16. With 16X/15mmeyepiece.
17. With Trinocular head and a 1/2X connected CTV port.
18. N.W.:15KG.

Applications: Gem Laboratory,Gemology School, Gemology student.
