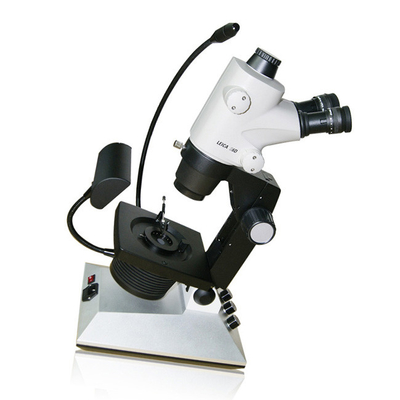

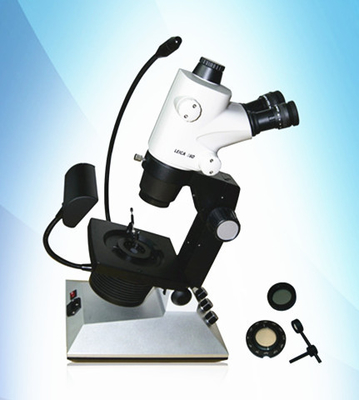

Fable New Generation Swing Arm 10.0X-64X Gem Trinocular Leica lens Microscope

Fable New Generation Swing Arm 10.0X-64X Gem Trinocular Leica lens Microscope

Model:FGM-R6S-02

Gemological microscope

Optical instruments for gemological lab

*Swing-arm type base 6: Classic microscope base, rotate 360° , so that more people can operate and communicate;
*go up and down stable and comfortable, great focus range;
*Adjustable automatic locking structure, avoid long time working and wear down lead to gliding;
*Supply dark field, bright field, top light and side light 4 types of illumination system;
*Bottom light: 10W adjustable high brightness USA made LED light, energy conservation and efficient,adopt latest patent illumination system (patent technology 201120391412.4), bright field and dark field complete separation, optimized dark field and bright field;
*Equip light beam diameter 2-42mm continuous adjustable diaphragm, ring dark filed DIFFUSER which fixed without screw, optimize dark field;
*6W LED top light, 6500+500K color temperature;
*3W adjustable single LED side light;
*Addition orthogonality polarized conoscope system, add more key evaluation basis that the gems under orthogonality polarizing;
*Unify voltage: 100-240V, stable lighting;

F02 Microscope Lens:

On the basis of S6E, the Leica S6D adds a three-eye camera export, including Leica professional camera receiver, which can be connected to CCD to output images. According to the customer's digital camera model (some cameras do not have an interface, please communicate with our company before purchasing the camera) to purchase a dedicated camera interface, you can easily take pictures with a digital camera; you can also choose a high-definition CCD to output images through the display.

Leica S6E lens, fully adopts the cross optical system (Greenough), provides ultra-high optical resolution and practicality; due to the excellent optical design, the eyes will not be fatigued after long-term use; two multiple limit devices with adjustable settings;

Applications:

Gemological laboratory, gemology school or institutes, gem and jewelry industry, --etc.
