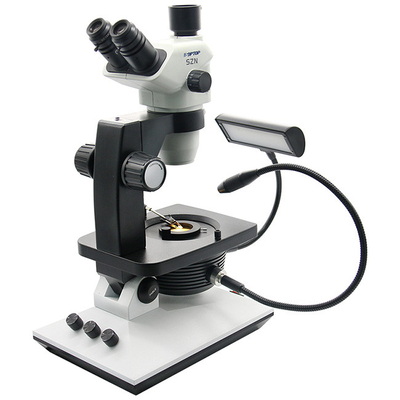

Fable Trinocular Gem Microscope Swing Arm 10X-67.5X for Gemological laboratory

Fable Trinocular Gem Microscope Swing Arm 10X-67.5X for Gemological laboratory

Fable Trinocular Gem Microscope Swing Arm 10X-67.5X  for Gemological laboratory
Fable Trinocular Gem Microscope Swing Arm 10X-67.5X  for Gemological laboratory
Fable Trinocular Gem Microscope Swing Arm 10X-67.5X  for Gemological laboratory
Product Details:
Place of Origin: Guangdong, China
Brand Name: FABLE
Certification: Patent number: 2011203914124
Model Number: FGM-R6S-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 1 set in a bubble box, 1 box in a master carton.
Delivery Time: In 15 days after order confirmation.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 800 sets/month
Contact Now
Detailed Product Description
Magnification: 10-67.5X Lens: Comparable With Olympus SZ61
Eyepiece: Trinocular Light Source: LED
Dimension: 435x330x670mm Weight: 15kg
Power Supply: 100-240V Warranty: 1 Year
High Light:

jewelers microscope

,

gemological microscope

Fable Trinocular Gem Microscope Swing Arm 10X-67.5X for Gemological laboratory

Model number: FGM-R6S-08



Description:

1. Generation 6th of Arm type Gem Microscope, with classical base and rotable of 360 degree for more convenience using and communicating.

2. 45°C inclined and 360°C rotational arm,more comfortable operating;

3. 4 illumination systems: bright field, dark field, top light and side light;

4. Bottom light: 10W of LED UAS made light;

5. Top light: 6W of LED white light with siutable temperature for grading diamond ;

6. With 3W LED side light;

7. With gem clipper mounting hold on both right and left side.

8. With Polariscope system.

9. With self-lock system for avoiding auto-down.

10. N.W.:15KG.



With F08 eyepiece for wide field of view and imaging clearly;

Magnification: 10X to 67.5X continuous variable
Zoom ratio: 6.7:1
Working distance: 110mm
Adjustable eyepiece: WF15X/16mm
Type: Trinocular
4 illuminations: bright field, dark field, top light and Optic Fiber light(Side light)
Color temperature: 6000-7000K
Adjustable Light beam: 2-42mm
Feature:

With latest lighting system for completely separating the dark and bright field.

World-wide voltage: 100V-240V;



Applications:

Gemological laboratory, gemology school or institutes, gem and jewelry industry, --etc.

Fable Trinocular Gem Microscope Swing Arm 10X-67.5X  for Gemological laboratory 0





Fable Trinocular Gem Microscope Swing Arm 10X-67.5X  for Gemological laboratory 1
