|Place of Origin:||China|
|Minimum Order Quantity:||1Unit|
|Packaging Details:||Carton package|
|Delivery Time:||10 working days after received your payment|
|Payment Terms:||T/T, Western Union or Paypal|
|Supply Ability:||1,000Units per month|
|Product Name:||Swing Arm Type Gem Microscope(Generation 2nd)||Magnifier:||10.0-67.5X Continuous Doubling|
|Input Voltage:||AC100V-240V Wide Voltage||Lens:||F08 Trinocular Lens|
|Color:||White||Body Adjust Range:||0-45°|

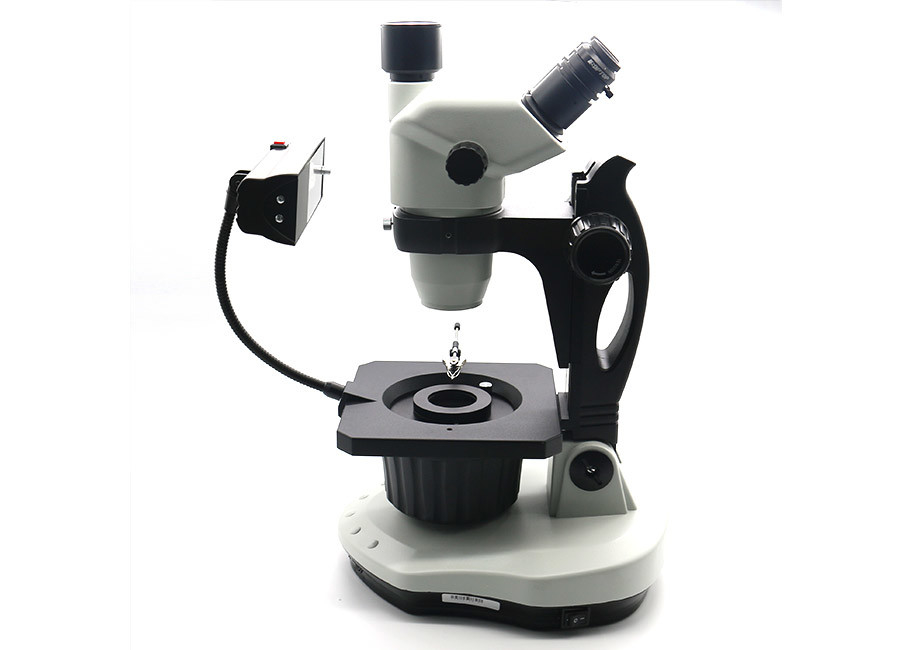

Ellipse base Generation 3rd Swing arm type Gem Microscope F08 Trinocular lens
Jewelry microscopes have relatively high requirements for the lens, which must meet the requirements of strong stereo, large depth of field, no chromatic aberration, no aberration, parfocal, and top light source, bottom light source,bright and dark fields. Our microscope meets all requirements of gem microscope.
Fable Generation 3rd of Arm type gem microscope,with classical base and rotatable of 360° for more convenience using and communicating.And good design and 45° inclined freely for comfortable operating.It can be changed the lens freely with the lock for avoiding auto-down.There are installing hold on both right and left side of the gem clip.
30W halogen lamp under the bottom side with 2-42mm diameter of flexibility light beam.
7W sunlight on the top side for providing suitable color temperature meet the requirement of grading diamond.World wide voltage of 100V-240V.
|1.Product Name: Swing arm type Gem Microscope(Generation 3rd)|
|2.With F08 Trinocular lens(6745N lens)|
|3.Ball type focusing guide rail, adjustable locking mechanism|
|4.Have three kinds of light illumination:Bright field,dark field and the top light|
|5.Mirror arm central design of hand hole position|
|6.The user-friendly design,both sides have gem clip mounting holes|
|7.AC100V-240V wide voltage power supply|
|8.10.0-67.5X continuous doubling;10X eyepiece,visual field is 22mm,work distance is 100mm;|
|9.30W High brightness adjustable halogen bottom lamp.|
|10.7W Daylight dome light 5500-7200K;0.5W white LED lighting,continuously adjustable|
|11.Free adjustment of the mirror body in the range of 0-45°.The Ellipse base can rotate 360 degrees.|
|12.The diameter of 2-42mm continuously adjustable light bar|
|13.Additional orthogonal polarizing conoscopic system|
