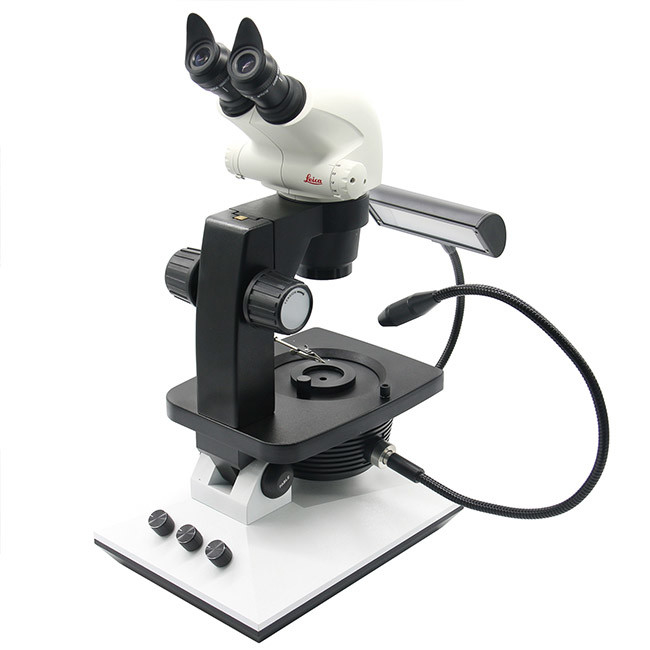

10X-64X Swing arm type Gem Microscope F01 binocular Leica lens

10X-64X Swing arm type Gem Microscope F01 binocular Leica lens

10X-64X Swing arm type Gem Microscope F01 binocular Leica lens
10X-64X Swing arm type Gem Microscope F01 binocular Leica lens
10X-64X Swing arm type Gem Microscope F01 binocular Leica lens
Product Details:
Place of Origin: China
Brand Name: Fable
Model Number: FGM-R6S-01
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: negotiation
Packaging Details: Carton package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 1,000Units per month
Contact Now
Detailed Product Description
Product Name: Swing Arm Type Gem Microscope(Generation 6th) Magnifier: 10X-64X Continuous Doubling
Input Voltage: AC100V-240V Wide Voltage Lens: F01 Binocular Lens
Color: White Feature: Polarizing Conoscopic System
High Light:

gemology microscope


gemological microscope

10X-64X Swing arm type Gem Microscope F01 binocular Leica lens


Product Description

For The 6th generation gem microscope base feature:

1.Rotating arm base:classical base,can be rotated within 360°

2.Arm design,the lens body can be adjusted freely within the range of 0-45°,comfotable and easy to operate.

3.The ball rail,self-locking function to avoid long-term use of wear decline

4.Humanized design,on both sides of the mounting holes of the gem folder,gem clip three dimensional space be adjusted freely

5.Bright field,dark field,top light and side light for lighting

6.10W high power coninuously adjustable of the U.S imports bottom LED lights,energy efficient

7.The latest patented lighting system(Patented technology2011203914124),makes the bright field,darkfield two illumination completely separated,an effective solution to the problem of confusion of the traditional bright field,dark field light illumination light,essentially optimize the bright dark field lighting effects

8.Fabricated beam diameter 2-42mm diameter continuously adjustable light bar,annular dark-field soft screw design,minus the screws image interference,high quality dark field

9.Top light 6W adjustable ultra-high brightness white LED surface light source,light distribution,6000-6500k color temperature accord with the lighting requirements of diamond grading

10.3W high brightness adjustable LED sidelight auxiliary lighting

11.An additional orthogonal polarized conoscopic system,to increase gem crossed polarizers key identification basis

12.Integrated Global Wide voltage power supply,100-240V voltage range can work properly.brightness and stability


Product Feature

1.Product Name: Swing arm type Gem Microscope(Generation 6th)
2.With F01 binocular lens(Leica S6E lens)
4.Ball type focusing guide rail, adjustable locking mechanism
5.Have four kinds of light illumination:Bright field,dark field,top light and side light
6.Mirror arm central design of hand hole position
7.The user-friendly design,both sides have gem clip mounting holes
7.AC100V-240V wide voltage power supply
8.10.0-64X continuous doubling;16X eyepiece,visual field is 15mm,work distance is 110mm;
9.10W high power continuous adjustable imported LED bottom lamp,Annular dark field diffuser, no screw design
10.6W continuously adjustable ultra high brightness LED white light surface light source
11.Free adjustment of the mirror body in the range of 0-45°.The Classical base can rotate 360 degrees.
12.The diameter of 2-42mm continuously adjustable light bar
14.Additional orthogonal polarizing conoscopic system
14.Side light auxiliary lighting with 3W high brightness adjustable LED


Product Application

Gemological labs, gemology schools/institutes, gem&jewelry industrials, --etc.
