170-180W Motor Tool Accessories Gem Lapidary Machine FJM-2014 AC220V 50-60Hz

170-180W Motor Tool Accessories Gem Lapidary Machine FJM-2014 AC220V 50-60Hz

  • 170-180W Motor Tool Accessories Gem Lapidary Machine FJM-2014 AC220V 50-60Hz
170-180W Motor Tool Accessories Gem Lapidary Machine FJM-2014 AC220V 50-60Hz
Product Details:
Payment & Shipping Terms:
Price: negotiation
Contact Now
Detailed Product Description
Function: Faceting And Polishing Operation: Automatic And Manual Availability
Faceting Hardness: Up To 9 Input Power: AC220V, 50-60Hz
Motor Power: 170-180 W Size: 600×270×410mm
Mainshaft Speed: 2300-2800 R/min Faceting Dish Diameter: 20 Cm
Accessory: 2 Faceting Hands G.W.: 25 KG
High Light:

jewelry tweezers

,

gemstone testing tools

170-180W Motor Tool Accessories Gem Lapidary Machine AC220V 50-60Hz

Model number: FJM-2014



The gem lapidary machine is used for gem facet processing and grinding samples for mineral separation. Fable Faceting machine has a compact structure and reasonable coordination. It has the advantages of stable operation, good heat dissipation and low noise under high-speed operation.



Advantage:

1. With Index both 96&64
2. With Faceting holder,the optional angle gauge for geting the exact faceting and angle of the gem.
3. With shaping holder for geting the good shape of the gem.



Technical Parameter:

Main functions: Faceting and Polishing the Gemstone.
Model FJM-2014
Input Voltage AC220V,50/60HZ
Moter Power 170-180W
Speed of Moter 1350r/min
Speed of Mainshaft 2300-2800r/min
Diameter of the disk 150mm
Angle Range 1-90 degree
Size of Machine 600*300*380mm
With vernier scale,accuracy 0.1mm
Operation manual operation availability
Index wheel 96 and 64
Feature To Faceting the gemstone with hardness up to 9



Operation Methods

Foot control. First turn on the machine's power switch, and then step on the foot switch, so that the grinding disc will begin to rotate for gem processing.When shutting down, raise the foot switch first, and then turn off the power switch.

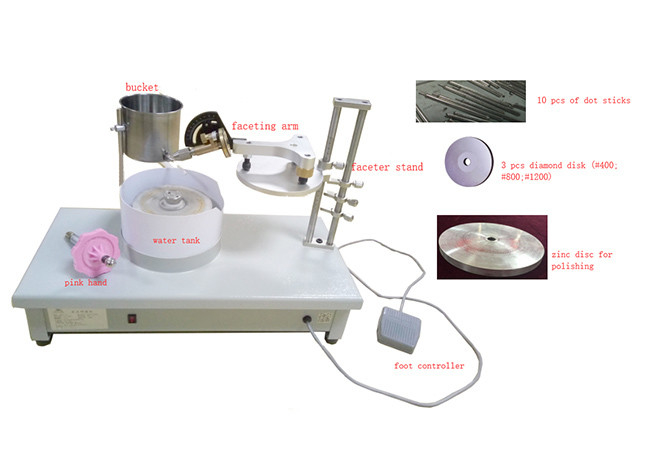

Accessories:

Equipped with a set of lifting table, a faceting hand, a pink hand, a 150mm diameter aluminum alloy hard disk (polishing disc), 400#/800#/1200# grinding disc, 10 pcs dop sticks, and a water cup



Applications:

gemology, gem/jewellry manufacturing industry, jewellery technology school, etc.
