Gem Testing Instruments Gemology Stander Conoscope for Polariscope

Gem Testing Instruments Gemology Stander Conoscope for Polariscope

Gem Testing Instruments Gemology Stander Conoscope for Polariscope

Product Details:

Place of Origin: Guangdong, China
Brand Name: Fable
Certification: CE
Model Number: FTP-Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: One in a leather bag then in a color box
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union,Paypal
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Product Name: Conoscope Body Case: Metal
Size: 8.5x5cm Application: Jewelry
Weight: 10g Warranty: One Year
Material: Glass Color: Black

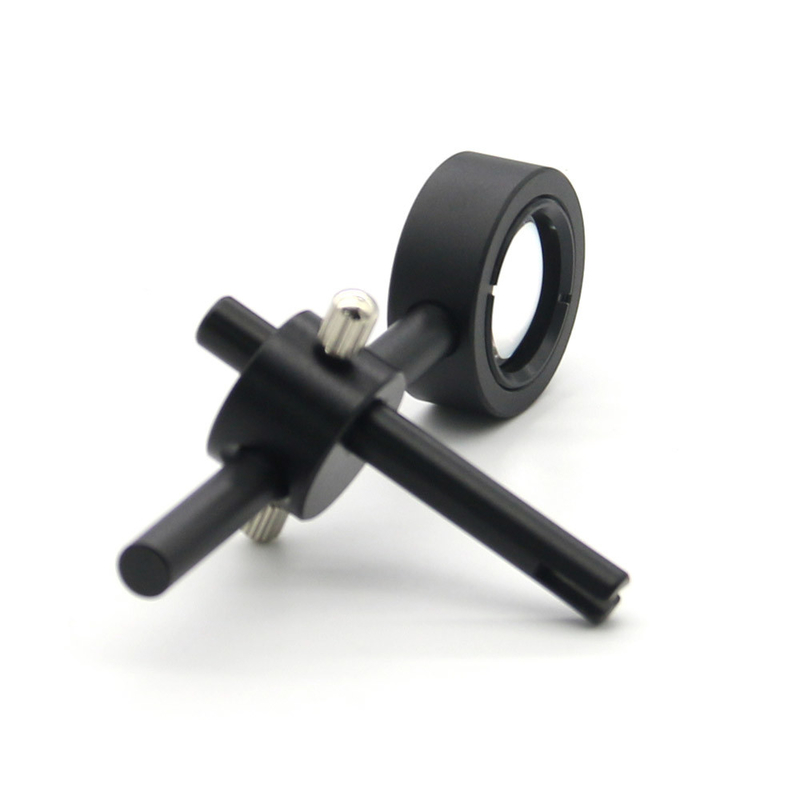

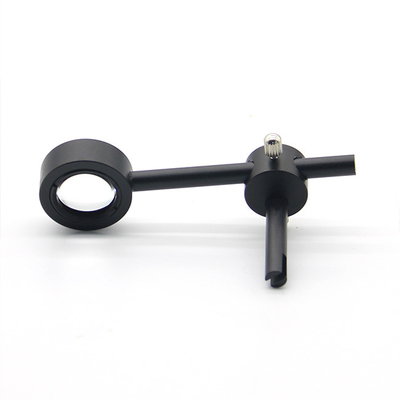

Fable Brand Stander Conoscope for Polariscope




In gemology, we use a conoscope (a strain free acrylic or glass sphere on a rod) to determine optic character (uniaxial or biaxial) in anisotropic gemstones. The conoscope creates a 2-dimensional image of the 3-dimensional interference in a mineral.
Although determining the optic character with a conoscope is a fairly easy procedure, finding the interference figure itself is not. The interference figures always appear around the optic axes of minerals.

The simplest way to find an interference figure is to rotate the stone under the polariscope, in every possible direction, while looking down the analyzer until one sees a small flash of colors appear on the surface of the gemstone. When that flash of colors is found, fix the stone in that position and hover your conoscope slightly over it. Now, while still looking through the analyzer, you should see the color flash transform into a rounded 2-dimensional image.
This image in uniaxial stones will appear different from the image in biaxial stones, each having its own characteristic pattern.


Applications: Gemological Laboratory, Gemology school, Jewelry industrial


Product Advantage:


1. With big size of 1.5cm diameter of the lens

2. With Stander
