Place of Origin: | China |
Brand Name: | Fable |
Model Number: | FGM-R5S-11 |
Minimum Order Quantity: | 1Unit |
---|---|
Price: | negotiation |
Packaging Details: | Carton package |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Western Union or Paypal |
Supply Ability: | 1,000Units per month |
Product Name: | Swing Arm Type Gem Microscope(Generation 2nd) | Magnifier: | 6.7-45X Continuous Zooming |
---|---|---|---|
Input Voltage: | AC100V-240V Wide Voltage | Lens: | F11 Binocular Lens |
Color: | White | Illumination: | 4 Kinds |
High Light: | jewelers microscope,gemology microscope |

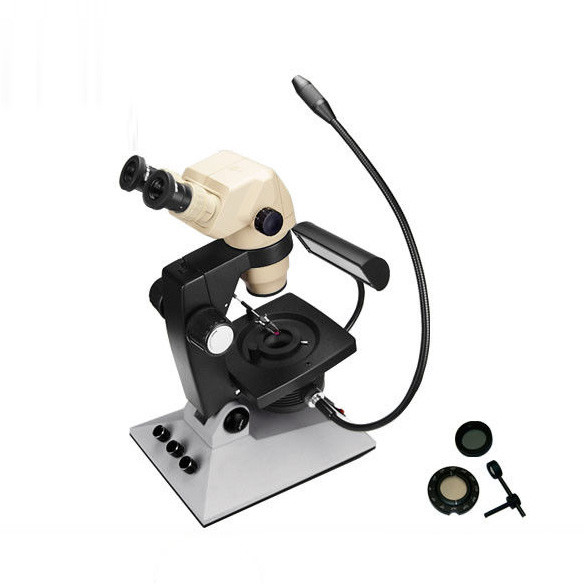

6.7-45X continuous zooming Swing arm type Gem Microscope F11 binocular lens
Product Description
Rotating type aluminium alloy base, lens body angle can be freely adjusted in 45 degree range.
Large hand wheel focusing, ball bearing type guide rail, go up and down stably and naturally. Ingenious appearance, comfortable feel,wide focusing range.
Adjustable self-lock system, to avoid gliding caused by long run attrition.
Human-based design structure,both sides have mounting hole for gem clamp,three dimensional adjusted freely.
Product Feature
1.Product Name: Swing arm type Gem Microscope(Generation 5th) | |||||
2.With F11 binocular lens(6745 lens) | |||||
3.Ball type focusing guide rail, adjustable locking mechanism | |||||
4.Have three kinds of light illumination:Bright field,dark field and the top light | |||||
5.Mirror arm central design of hand hole position | |||||
6.The user-friendly design,both sides have gem clip mounting holes | |||||
7.AC100V-240V wide voltage power supply | |||||
8.6.7-45X continuous doubling;10X eyepiece,visual field is 22mm,work distance is 100mm; | |||||
9.10W high power continuous adjustable imported LED bottom lamp,Annular dark field diffuser, no screw design | |||||
10.6W continuously adjustable ultra high brightness LED white light surface light source 5500-7200K | |||||
11.Free adjustment of the mirror body in the range of 0-45°.The Classical base can rotate 360 degrees. | |||||
12.The diameter of 2-42mm continuously adjustable light bar | |||||
13.Additional orthogonal polarizing conoscopic system | |||||
14.Side light auxiliary lighting with 3W high brightness adjustable LED |
Product Application
Gemological labs, gemology schools/institutes, gem&jewelry industrials, --etc.
