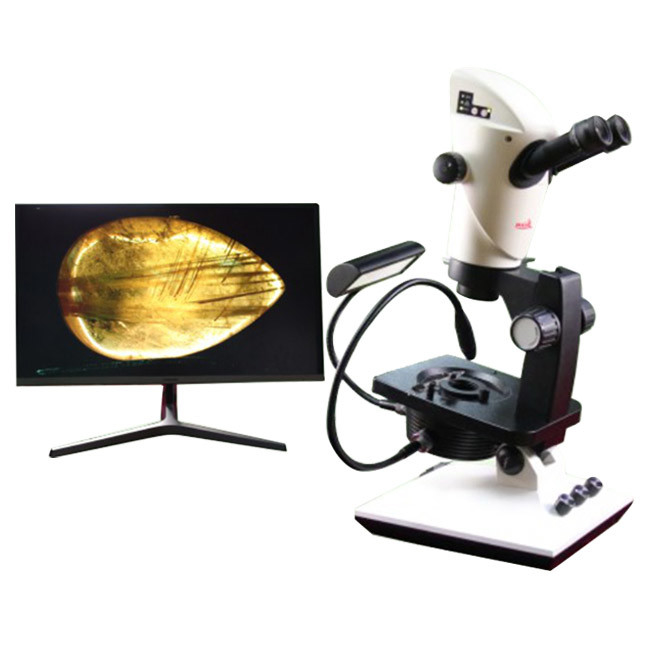

Rotary Arm Type Gem Stereo Photographic Microscope 9.8X-88X Magnification

Rotary Arm Type Gem Stereo Photographic Microscope 9.8X-88X Magnification

  • Rotary Arm Type Gem Stereo Photographic Microscope 9.8X-88X Magnification
Rotary Arm Type Gem Stereo Photographic Microscope 9.8X-88X Magnification
Product Details:
Place of Origin: China
Brand Name: Fable
Model Number: FGM-R6S-M6S9I
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Export Carton
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Drawtube: Binocular Theory: Stereo Microscope
Magnification: 9.8X-88X Eyepiece: WF16X/15mm
Color: As The Picture Warranty: 1 Year
Weight: About 16kg Power Supply: 100V To 240V
Working Distance: 122mm Jewelry Tools & Equipments Type: Microscope
High Light:

Gem Stereo Photographic Microscope


Rotary Arm Type Photographic Microscope


88X Magnification Photographic Microscope

Fable Rotary arm type gem photographic stereo Leica lens 9.8-88X BINOCULAR Gem Microscope



Rotary arm type gem photographic stereo microscope R6S- M6S9I "rotary arm base six generations:

* Atmospheric classic base, which can be rotated 360°;
* The lens body can be adjusted freely within the range of 0-45°; ball-type guide rail; adjustable self-locking mechanism; installation holes for gem clips on both sides;
* Provide four lighting modes: bright area, dark area, top light&side light;
* 10W high-power continuously adjustable LED bottom light imported from the United States, energy-saving and efficient; using the latest lighting system;
* The two lighting methods of bright field and dark field are completely separated, which effectively solves the problem of illuminating light confusion that exists in the traditional bright field at the same time as the dark field light; the assembly beam diameter is 2-42mm and the continuously adjustable light barrier;
* The ring-shaped dark field diffuser has no screw fixing design, minus the screw image interference, providing high-quality dark field;
* The ceiling light is a 6W continuously adjustable ultra-high brightness LED white surface light source, and the color temperature of 6500+500K meets the requirements of diamond grading lighting;
* 3W high-brightness adjustable LED side light auxiliary lighting;
* The orthogonal polarization conoscopic system is added to increase the key identification basis for gemstones under orthogonal polarization; integrated global wide voltage power supply, stable brightness;


Leica lens:

1. Crossed optical system, ultra-high optical resolution, complete apochromatic correction from the main optical path to the object image;
2.38 degree viewing angle;
3. Magnification: 9.8-88X continuously variable; with multiple locking piece to prevent accidental change of magnification;
4. The zoom ratio is 9:1;
5. Eye distance adjustment range: 55-75mm;
6. Adjustable binocular diopter, diopter adjustment: ±5 degrees;
7. Working distance: 122mm;
8. Focusing range: 135mm;
9. The new double-headed gem holder can move freely in three-dimensional space;
10. Equipped with high-definition display.
