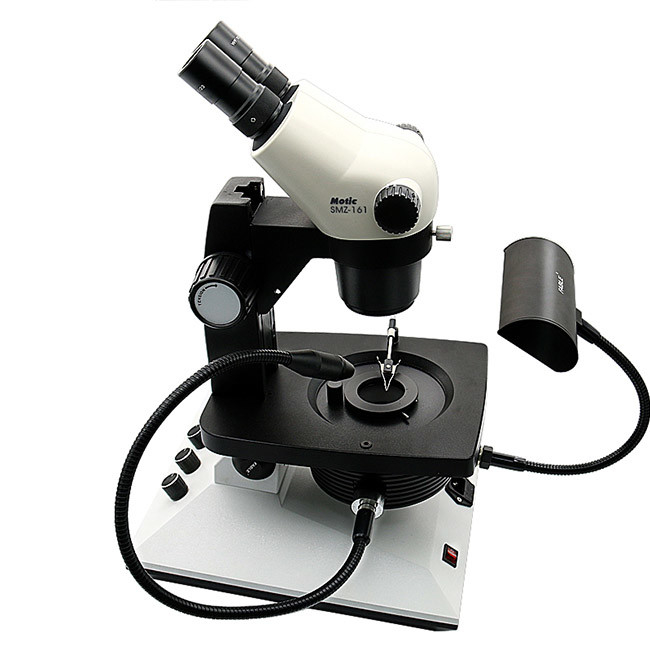

WF10X Eyepiece Swing Arm Gem Binocular Microscope 110mm Distance

Swing-arm assembly beam diameter 2-42mm 7.5-45X BINOCULAR Gem Microscope R6S-161

Specification:

Specification:

1. Swing-arm type base 6: Classic microscope base, rotate 360°;
2. this mirror body can be adjusted freely within the range of 0-45°; ball rail;
3. adjustable self-locking mechanism; both sides with gem clamp mounting hole;
4. provide the bright field and dark fields, top light and side light four lighting mode 10W high power adjustable USA LED bottom lamp, energy saving and high efficiency;
5. assembly beam diameter 2-42mm continuously adjustable light bar, no screw design.
6. The annular dark field diffuser, minus screw image interference, provide quality dark field; 6W continuously adjustable high brightness white light LED surface light source,
7. with 6500+500K color temperature diamond grading requirements. 3W high brightness adjustable LED side light. Additional auxiliary lighting;
8. orthogonal polarization conoscopic system, increase the key evidence for the identification of precious stones under the orthogonal polarization;
9. integration of world wide voltage, stable brightness; Equipped with F161 lens:
10. zoom like high definition, upright, vivid color, three-dimensional sense of strong,
and a wide field of vision, optical components through a special coating process,
11. forming a flat image of good contrast in ultra wide field of view, the edge image is clear and bright;
12. 7.5X-45X continuous accurate zoom, zoom ratio 1:6; working distance 110mm
13. the eyepiece tube with respect to the horizontal direction tilted 45 degrees, the interpupillary distance adjustment range 50mm-75mm
