Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm

Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm

  • Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm
  • Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm
Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm
Product Details:
Place of Origin: China
Brand Name: Fable
Model Number: FUV-007
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Black Suitcase
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: UV Vis Optic Fiber Spectrometer Product Size: 496mmx394mmx185mm
Product Weight: 13.8KG Wave Length: 220-1000nm
TEC Cooling:: Up To -10℃ Warranty: One Year

Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm



Sepctrometer rapid detect UV visible-near-infrared absorption characteristics of jewelry and jade



1: determine the species, genesis (natural, synthetic, etc.) and optimization treatment characteristics of jewellery and jade materials.

2: It can nondestructively detect various types of jewellery and jade.

3: There are no restrictions on sample shape, size, etc., and no sample preparation is required.

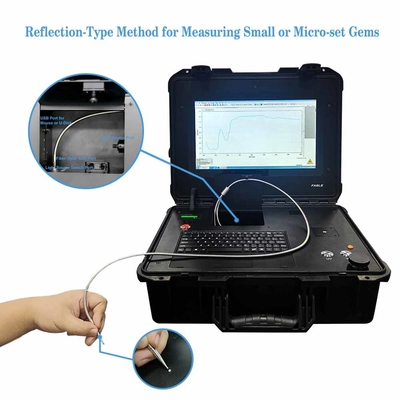

4. It has two Measurement methods: reflection integrating sphere type, and reflection fiber probe type
5. Can automatically capture the phosphorescence spectrum;

6. Quickly judge a natural diamond by detecting the absorption peak of Type Ia natural diamond at 415nm


Technical Parameter

Model Number: FUV-007
Spectral effective measurement range: 220-1000nm;
Integration time: 1ms-100s;
Signal-to-noise ratio: >1000:1;
Resolution: 1.5nm;
Detector: back-illuminated CCD area array detector,
Number of pixels: 2048×64
With TEC cooling: up to -10℃;
Battery capacity: 15000mAh,can be used continuously for 3 hours when fully charged;
Charger:

INPUT:AC100-240V 50/60Hz,

OUPUT: DC25.2V, 4A;

Dimensions: 496mm×394mm×185mm;
Weight: 13.8kg.

Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm 0Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm 1Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm 2Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm 3Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm 4Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm 5
