Shenzhen Fable Jewellery Technology Co., Ltd.
We are making it better！
 |
| Place of Origin: | China |
| Brand Name: | Fable |
| Model Number: | FUV-007 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Black Suitcase |
| Payment Terms: | L/C, T/T, Western Union,Alipay |
| Supply Ability: | 100 sets per month |
| Detector:: | Back-illuminated CCD Area Array Detector | Integration Time:: | 1ms-100s |
|---|---|---|---|
| Signal-to-noise Ratio:: | >1000:1; | Resolution:: | 1.5nm; |
| Battery Capacity:: | Can Be Used Continuously For 3 Hours When Fully Charged | INPUT: | AC100-240V 50/60Hz |

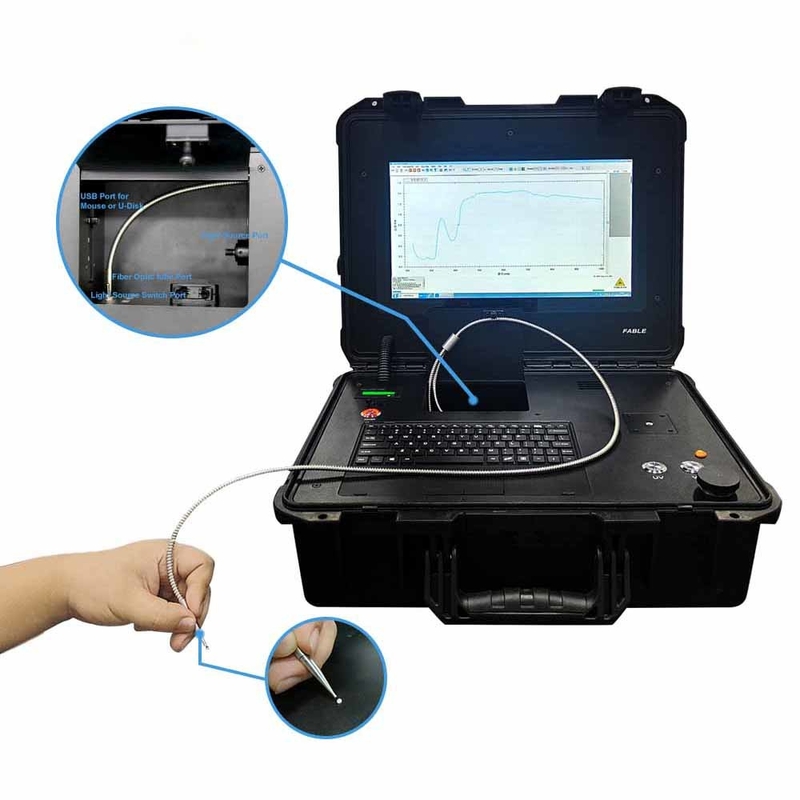

Fable Brand Black UV Spectrometer Spectral Effective Measurement Range 220nm-1000nm INPUT AC100-240V
1: It can detect various types of jewelry and jade nondestructively.
2: determine the species, genesis (natural, synthetic, etc.) and optimization treatment characteristics of jewelry and jade materials.
3: Rapid judge a natural diamond by detecting the absorption peak of Type Ia natural diamond at 415nm
4. Can capture the phosphorescence spectrum automatically;
5. Two Measurement methods: reflection integrating sphere type and reflection fiber probe type
6. No sample preparation is required, and there are no restrictions on sample shape, size, etc.,
Technical Parameter
| Product Name | UV Vis Optic Fiber Spectrometer |
| Model Number: | FUV-007 |
| Spectral effective measurement range: | 220-1000nm; |
| Integration time: | 1ms-100s; |
| Signal-to-noise ratio: | >1000:1; |
| Resolution: | 1.5nm; |
| Detector: | back-illuminated CCD area array detector, |
| Number of pixels: | 2048×64 |
| With TEC cooling: | up to -10℃; |
| Battery capacity: | 15000mAh,can be used continuously for 3 hours when fully charged; |
| Charger: |
INPUT:AC100-240V 50/60Hz, OUPUT: DC25.2V, 4A; |

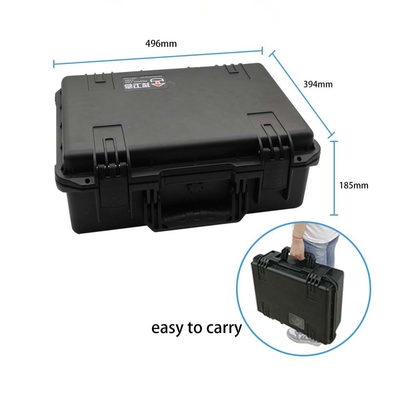

| Dimensions: | 496mm×394mm×185mm; |
| Weight: | 13.8kg. |
How to proceed an order?
After buyer confirm the product&price is fine and ready to buy, please tell us your delivery address, phone number, post code sometimes need email to make our Proforma invoice to arrange payment, bank details and order details will be included in the invoice.
