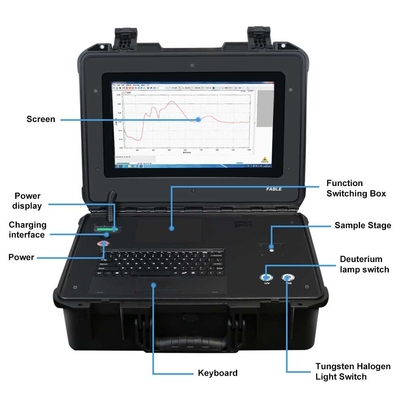

Fable Black UV Spectrometer Quickly Detect Absorption Peak Of Type Ia Natural Diamond At 415nm
Technical Parameter
| Model Number: | FUV-007 |
| Spectral effective measurement range: | 220-1000nm; |
| Integration time: | 1ms-100s; |
| Signal-to-noise ratio: | >1000:1; |
| Resolution: | 1.5nm; |
| Detector: | back-illuminated CCD area array detector, |
| Number of pixels: | 2048×64 |
| With TEC cooling: | up to -10℃; |
| Battery capacity: | 15000mAh,can be used continuously for 3 hours when fully charged; |
| Charger: |
INPUT:AC100-240V 50/60Hz, OUPUT: DC25.2V, 4A; |
| Dimensions: | 496mm×394mm×185mm; |
| Weight: | 13.8kg. |
1: It can nondestructively detect various types of jewelry and jade.
2: determine the species, genesis (natural, synthetic, etc.) and optimization treatment characteristics of jewelry and jade materials.
3: Quickly judge a natural diamond by detecting the absorption peak of Type Ia natural diamond at 415nm
4. Can automatically capture the phosphorescence spectrum;
5. Two Measurement methods: reflection integrating sphere type and reflection fiber probe type
6. There are no restrictions on sample shape, size, etc., and no sample preparation is required.
